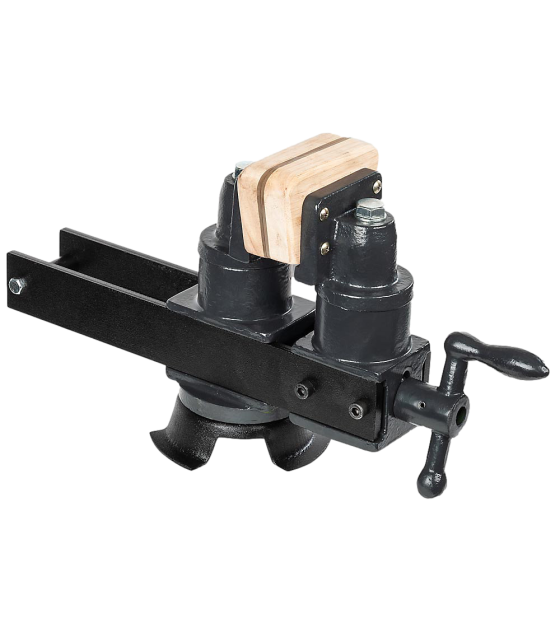

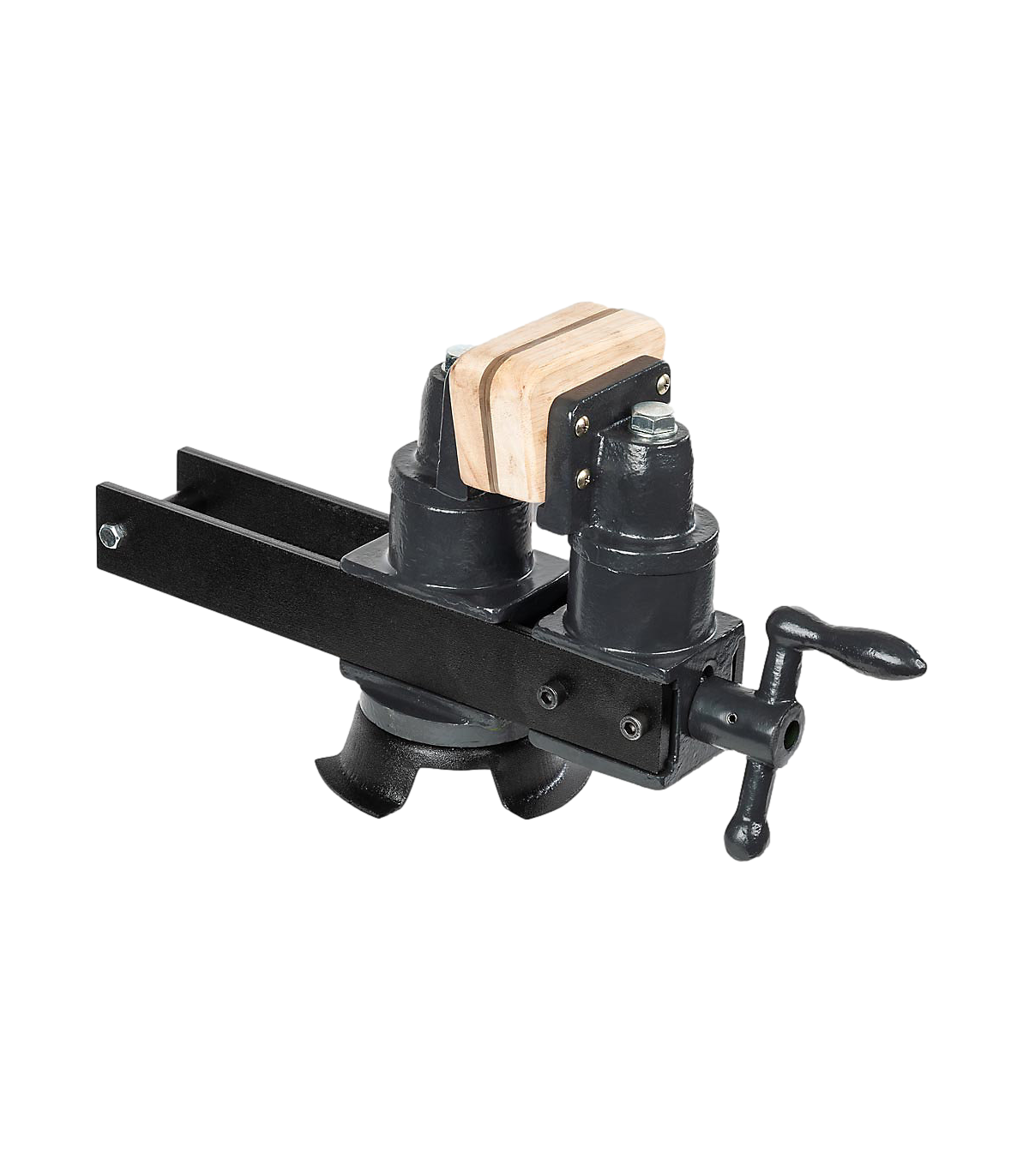

Pattern makers vise
A luthiers best friend!
Ideal for all sorts of jobs on your instrument.
Details

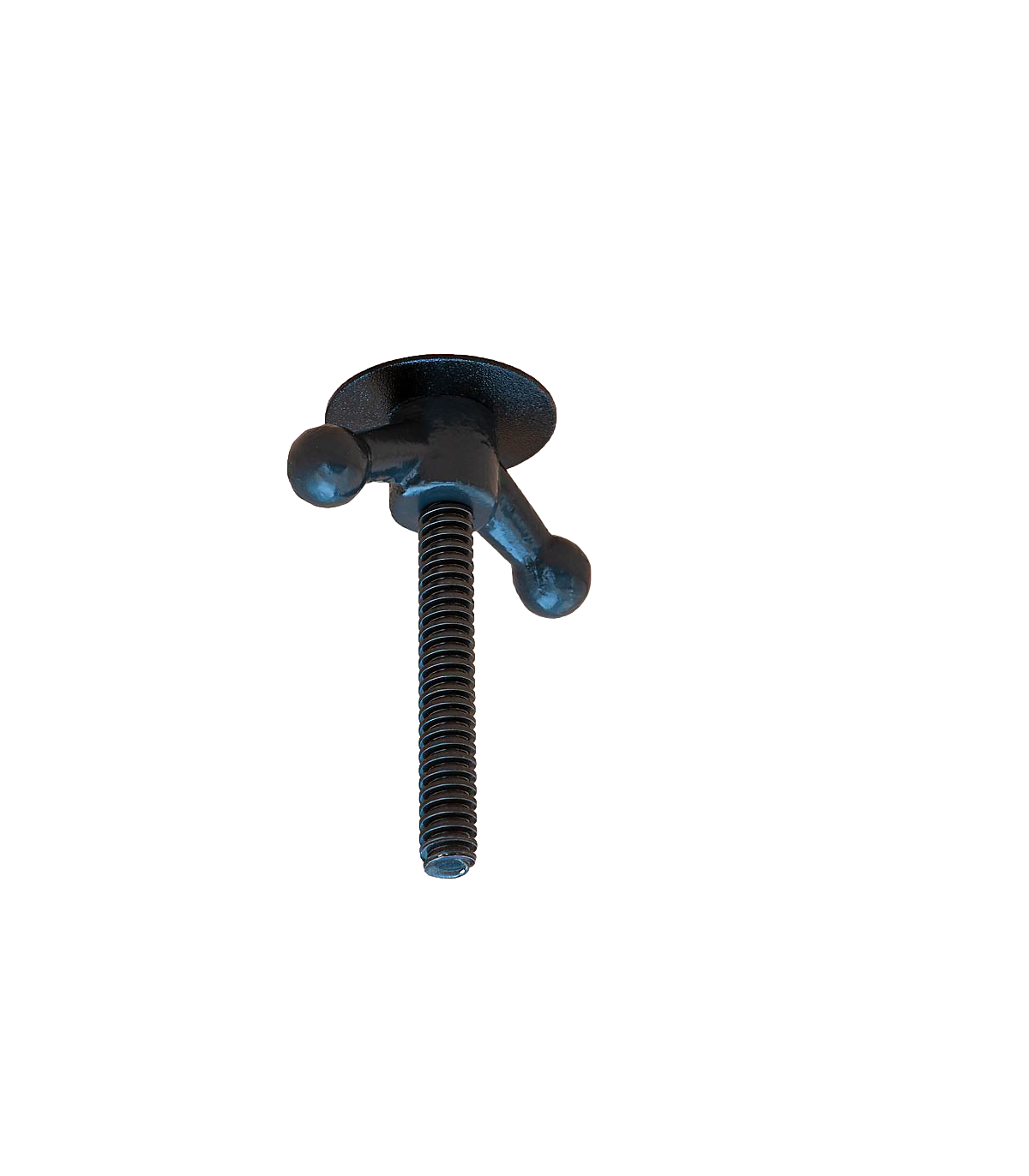

The solid cast iron construction is equipped with parallel guides for the jaws, which rotate to clamp pieces of any shape without damaging them. Safe to use with painted instruments. The vise can be mounted on your workbench by drilling a hole. Once mounted, it can be easily rotated 360° and locked in place with a wing nut. The swivel base can be mounted above the tabletop (working height 250 mm) or below (working height 215 mm). Made of grey cast iron, steel guide rails, trapezoidal thread on the shaft with hand crank, soft wooden jaws with soft polyurethane coatings. Maximum worktop thickness 130 mm.
- Maximum opening 150 mm
- Weight 14 kg
- Jaw width 125 mm
The color can be black or green!
